Beetle 1.3 Motherboard
The motherboard is needed therefore to attach the Beetle 1.3 test PCB.Following technical drawings are available:
- Beetle 1.2/1.3 motherboard (version 06/2002), size is 24.2cm x 15.7cm.
- Pin description (pdf)
- Motherboard labels (pdf)

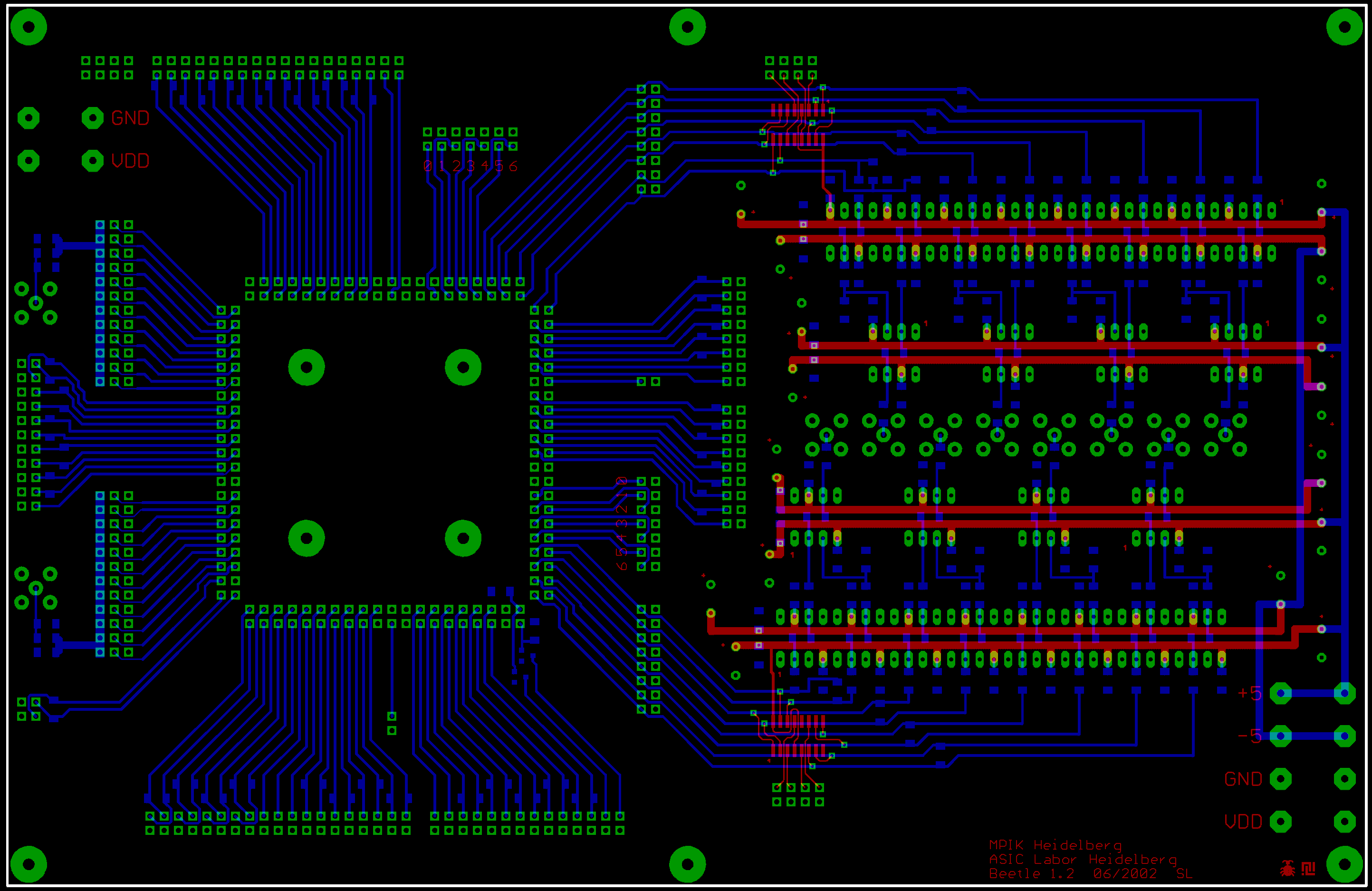

- PCB Layout (gif)
- Motherboard schematic (pdf)
- Beetle 1.3 motherboard (version 10/2003), size is 19.7cm x 15.7cm.
- Pin description (pdf)
- Motherboard labels (pdf)

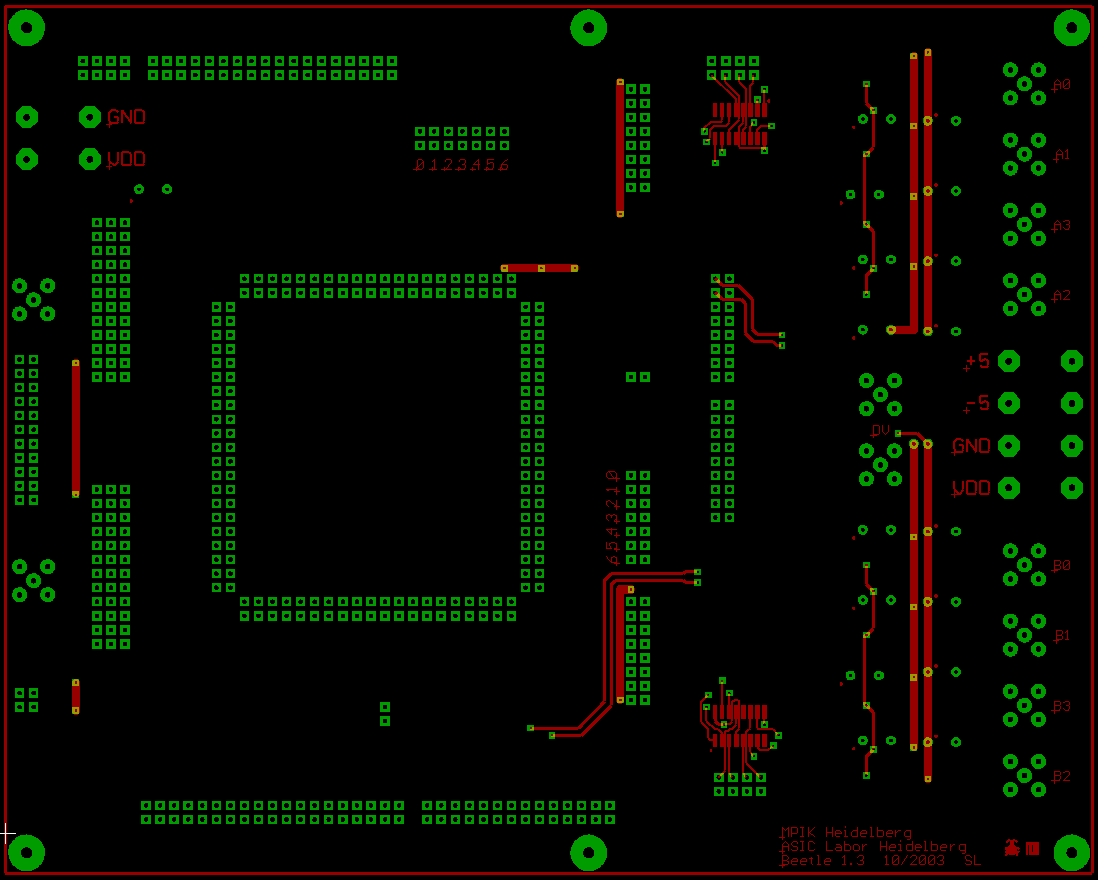

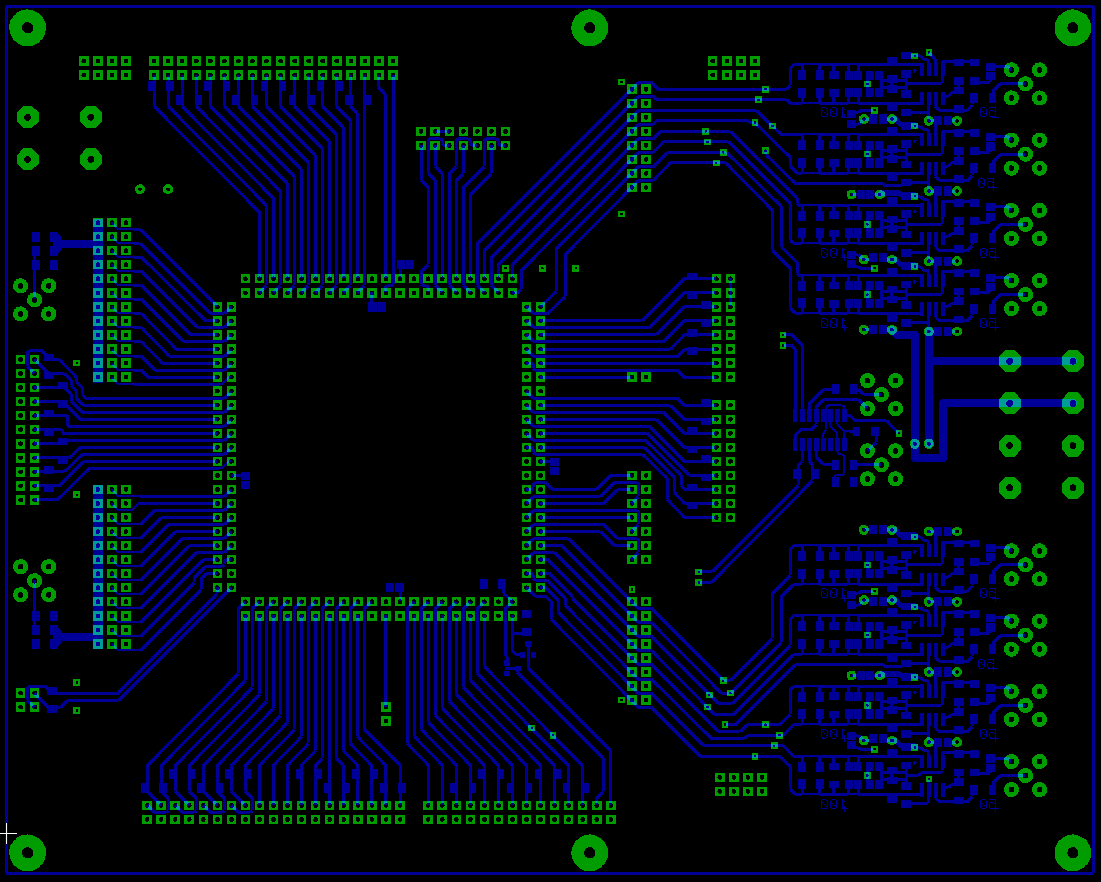

- PCB Layout: top / bottom view
Letzte Änderung: 13 Nov 2003
