-- The modular VME Test system:
a platform for ATLAS developments --
(links hereunder point to a picture of the item;
use the browser's "back" to return here)

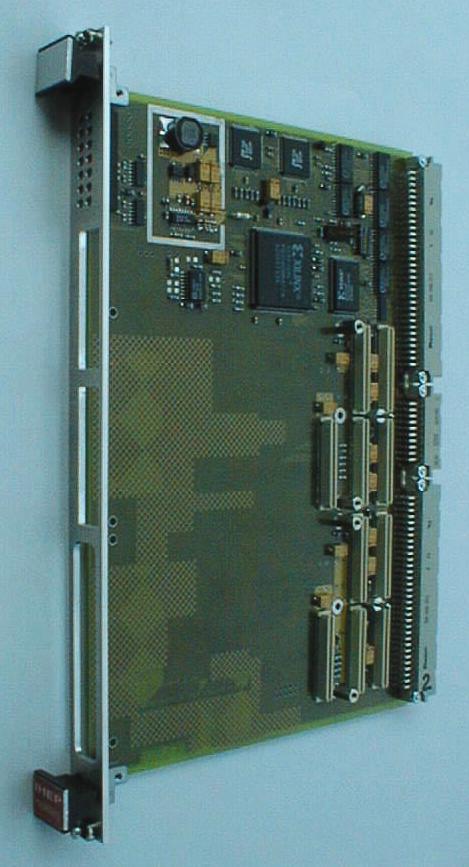

The VME motherboard serves as a carrier

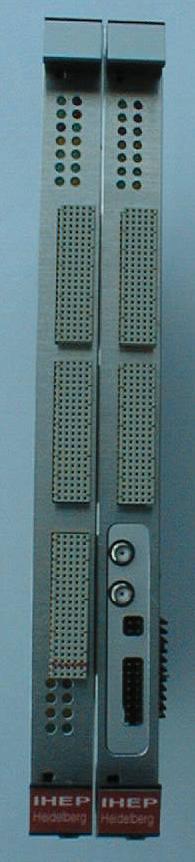

for two CMC (Common Mezzanine Cards). Its front-panel
is tailored to allow "massive" Input/Output for certain applications, required
in the ATLAS Level-1 Calorimeter Trigger Pre-Processor. Its main feature
is a XiLinx_FPGA, which serves two purposes:
Interface via a "dual-ported" memory to VME.
Control and provide data Input/Output to/from the mezzanine cards.
Several types of CMC cards were - and are still being - built:

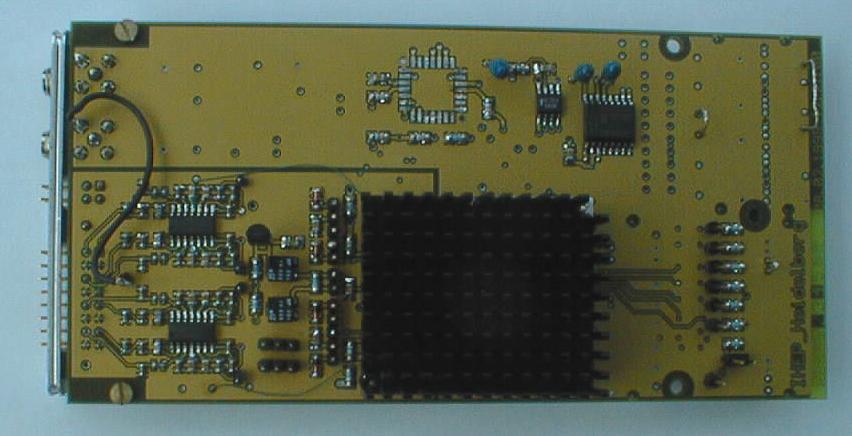

The CMC_dMCM, to test an essential building
block of the Pre-Processor system -- the "demonstator"

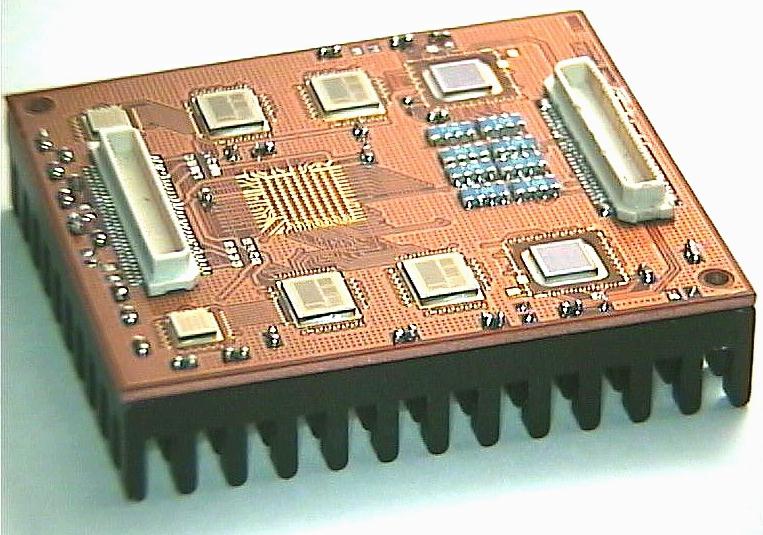

(Multi Chip Module)

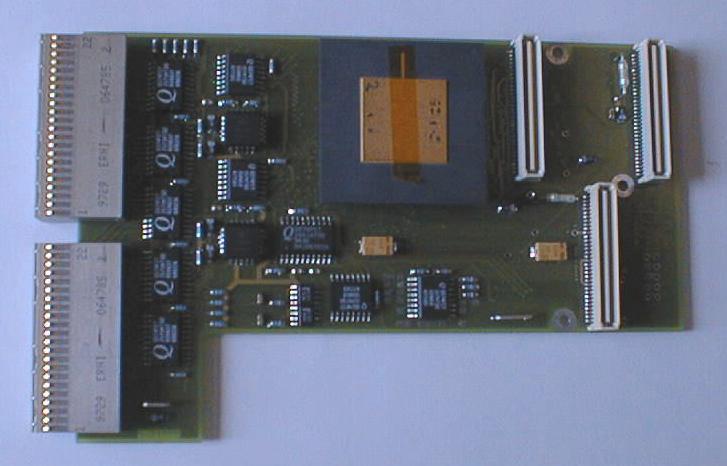

The CMC_ LVDS Transmitter/ Receiver

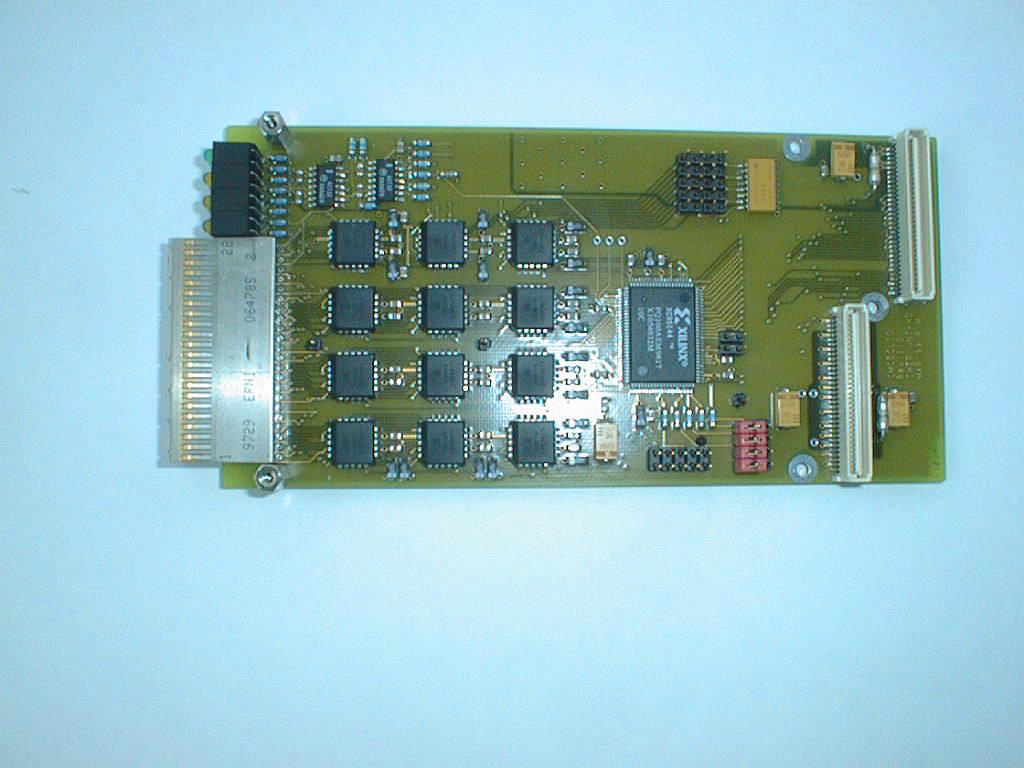

The NEW, more versatile version of LVDS transmission/reception and Fanning-out.

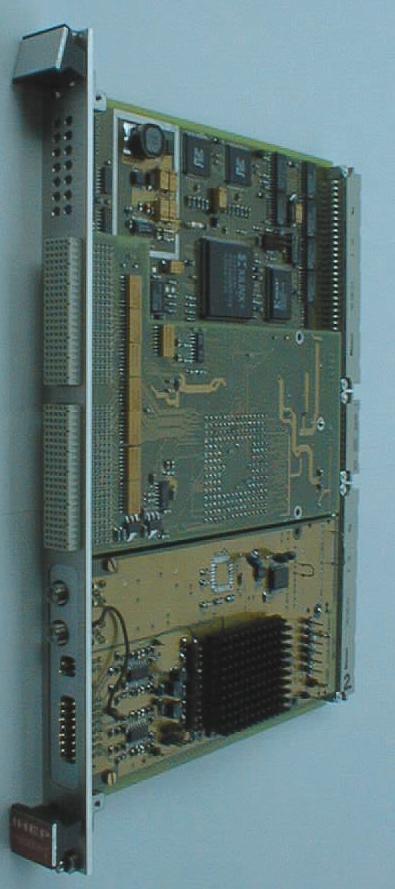

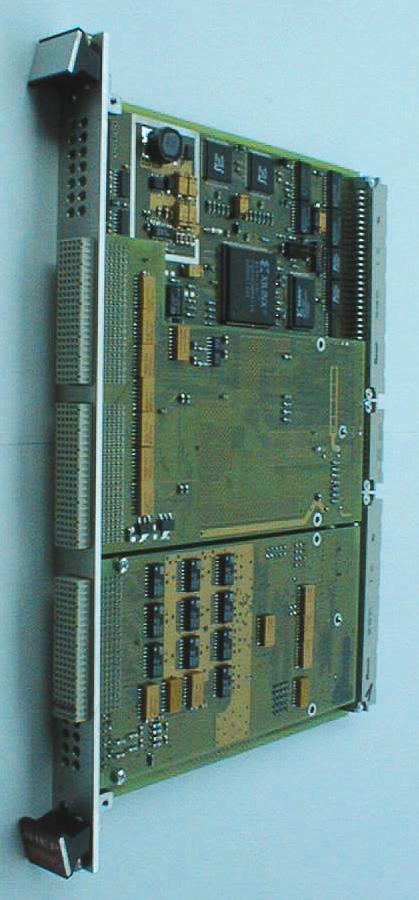

The VME motherbords can be equipped with various configurations of CMC
daugthers. The essential difference lies in the code of the controlling
FPGA. Examples are:

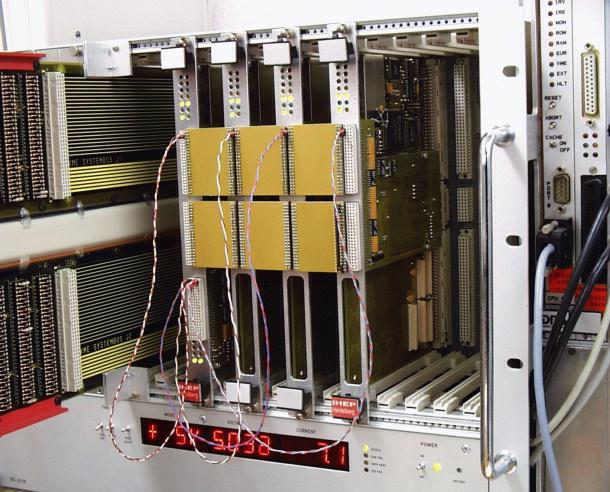

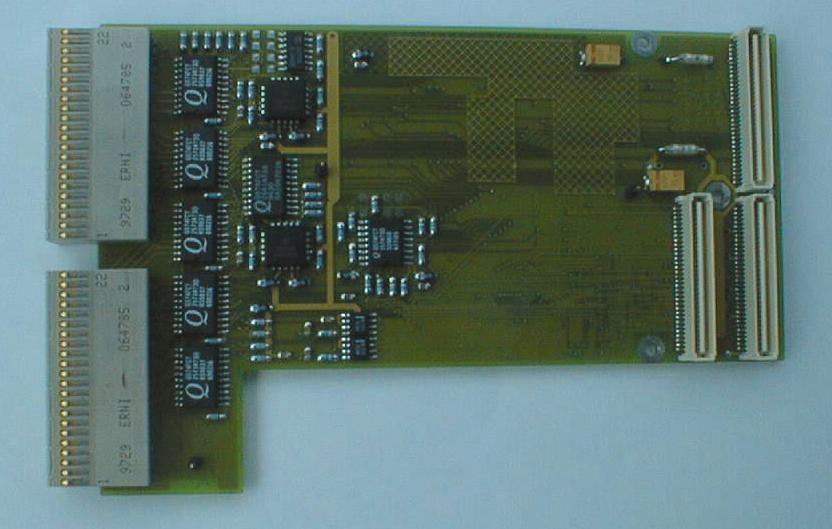

A "complex system" used for tests of the PipeLineBus principle comprises
VME motherboards, all equipped with CMC cards.
